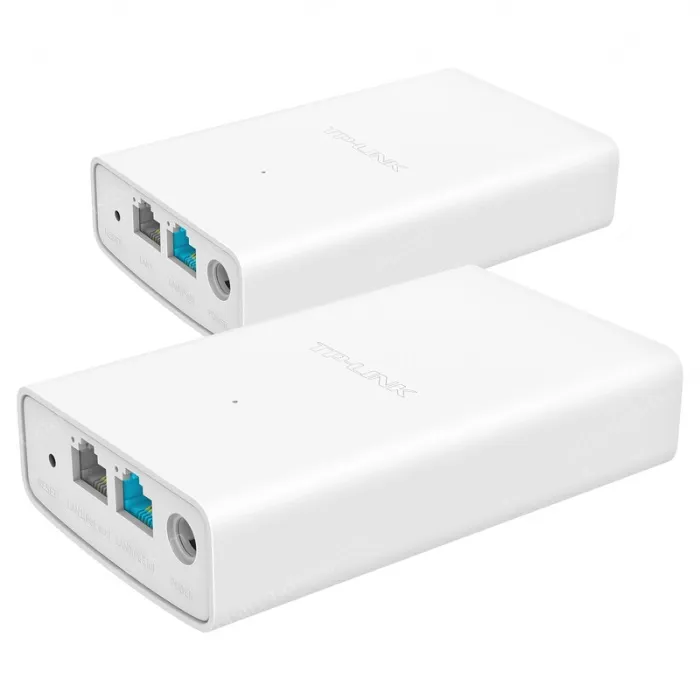

      Standard PoE powered wireless bridge

      ★ ★ ★ ★ ★ 4.9 4276 Reviews

      Model: TL-E521

      Order No: TL-E521

      SKU: 1718246127652962873

      Category: Wireless bridge

      Brand: TP-LINK

      Condition: New Sealed Under Guarantee

      Size: 109.00mm, 66.00mm, 33.00mm; Diam:0.00cm

      Weight: 0.00kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews
      Standard PoE powered wireless bridge
      • 11AC wireless technology, 867Mbps wireless rate
      • 100 floors of elevator shaft environment 4K video transmission easily
      • Factory configuration-free, default bridge connection
      • Supports 802.3af/at standard PoE power supply
      • It supports 12-24V voltage DC input and Passive PoE power supply
      • It supports 802.3af standard PoE output and can supply power to the lower IPC
      • The wireless transmission power is linearly adjustable, and the transmission distance can be adjusted according to the needs to avoid co-channel interference
      • Independent hardware protection circuit, which can automatically recover equipment that is working abnormally
      • It supports TP-LINK business cloud APP LAN viewing and management configuration
      • Support TP-LINK bridge centralized management software unified management
      • Centralized management of TP-LINK commercial network cloud platform is supported
      Standard PoE powered wireless bridge

      Hardware specifications

      Product model
      • TL-E521 Fixed End
      • TL-E521 car end
      Installation:
      • Pole mounting
      Wireless standards
      • IEEE 802.11b/g/n/ac
      Wireless rate
      • 866.7Mbps
      Maximum transmit power
      • 17dBm
      Antenna coverage angle
      • Horizontal 70°
      • Vertical 80°
      Maximum wireless transmission distance (in a non-interference environment)
      • More than 100 floors
      Port
      • Fixed End:
      • 1 x 10/100M RJ45 port (LAN0/standard PoE input)
      • 1 x 10/100M RJ45 port (LAN1/12~24V Passive PoE input)
      • 1 DC power outlet port
      • Car end:
      • 1 x 10/100M RJ45 port (LAN0/Standard PoE input/44~57V Passive PoE input)
      • 1 x 10/100M RJ45 port (LAN1/802.3af standard PoE output)
      • (53.5V 0.45A power adapter required, both DC power supply and Passive PoE power supply support standard PoE output)
      • 1 DC power outlet port
      Power supply mode
      • Fixed terminal (1 x 24V0.25A power adapter + 1 x 100 Gigabit PoE module):
      • Supports 802.3af/at standard PoE power supply
      • Support 12~57VDC power supply and Passive PoE power supply
      • Car side (factory delivery 1 * 53.5V 0.45A power adapter + 1 * 100 Gigabit PoE module):
      • Supports 802.3af/at standard PoE power supply
      • It supports 12~57VDC power supply and 44~57V Passive PoE power supply
      • It supports 802.3af standard PoE output with a maximum output power of 15.4W
      Light
      • A system status indicator
      Product dimensions
      • 109*66*33mm
      Use environment
      • Operating temperature: 0°C~40°C
      • Operating humidity: 10%~90%RH non-condensing
      • Storage temperature: -40°C~70°C
      • Storage humidity: 5%~90%RH non-condensing
      Whether it supports wide-voltage power supply
      • The bridge supports a wide range of power supply: 12V-57V
      The maximum power of the whole machine
      • 8W (DC input, excluding load)
      • 7.68W (Standard PoE Input)
      Buttons, switches
      • 1 RESET button

      Software Specifications

      Wireless mode of operation
      • Fixed end, car end
      Network settings
      • LAN port connection: static IP, dynamic IP
      Wireless setup
      • 802.11b/g/n/ac mode
      • Automatic channel selection
      • Channel tuning
      • Page channel analysis function
      • Transmit power adjustment
      • Wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption
      • SSID Broadcast/Hide
      • WDS
      • Channel bandwidth selection
      • Advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, and WMM
      • Wireless MAC address filtering
      Manage maintenance
      • HTTP/HTTPS WEB MANAGEMENT
      • System logs
      • Ping watchdog
      • It is managed by TP-LINK bridge centralized management software
      System tools
      • System status: signal strength, noise intensity, transmission CCQ, and CPU usage
      • Condition Monitoring: Throughput/Wireless Clients/Interfaces/ARP
      • Spectrum analysis
      • Rate test
      • Ping
      • Traceroute
      System optimization
      • Hardware watchdog
      • IGMP Snooping optimization
      Manage
      • Support business cloud APP LAN management
      • Support bridge centralized management software management
      • It supports TP-LINK commercial cloud platform management
