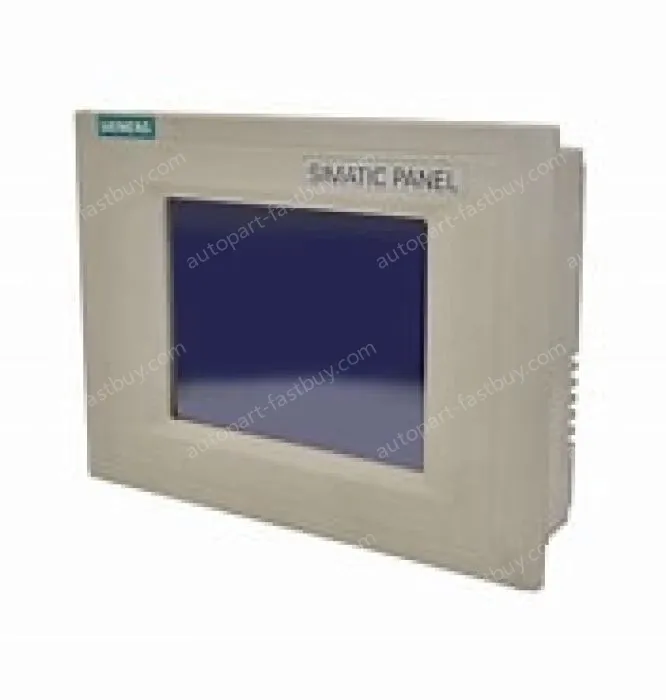

      6AV6545-0BB15-2AX0 TP170B BLUE MODE STN-DISPLAY
      Artikelnummer6AV6545-0BB15-2AX0
      SIMATIC TOUCH PANEL TP170B MONO BLUE MODE STN DISPLAY MPI-/PROFIBUS-DP INTERFACE PRINTER/RS232 INTERFACE SLOT FOR CF-CARD CONFIGURABLE WITH PROTOOL/LITE FROM VERSION V5.2+SP2
      Display
      Design of displaySTN
      Screen diagonal5.7 in
      Size5.7"
      Display typeSTN, 4 blue levels
      Color typeBlue levels
      Resolution (pixels)
      ● Horizontal image resolution320
      ● Vertical image resolution240
      ● Resolution (WxH in pixel)320 x 240
      Backlighting
      ● MTBF backlighting (at 25 °C)50 000 h
      Control elements
      Control elementsTouch screen
      Operating optionsTouch
      Connection for mouse/keyboard/barcode reader- / - / -
      Keyboard
      ● Numeric/alphabetical inputYes / Yes
      — hexadecimal keyboardYes
      ● Multi-key operationNo
      Touch operation
      ● Design as touch screenYes
      Input current
      Rated current0.25 A
      Power
      Power6 W
      Processor
      Processor typeRISC 32-bit, 66 MHz
      Drives
      Diskette driveNo
      CD-ROMNo
      Hard diskNo
      Memory
      Usable memory for user data768 kbyte
      Time of day
      Clock
      ● TypeSoftware clock, synchronizable, no battery backup
      ● Hardware clock (real-time clock)No
      ● Software clockYes
      ● Battery-backedNo
      ● SynchronizableYes
      ● battery-backed and synchronizableNo
      Interfaces
      InterfacesTTY optional, 2 x RS232, 1 x RS422, 1 x RS485 (max. 12 Mbit/s)
      Number of RS 485 interfaces1
      ● Transmission rate, max.12 Mbit/s
      CF card slot1 x CF card slot
      Degree and class of protection
      FrontIP65
      IP (at the front)IP65
      IP (rear)IP20
      Standards, approvals, certificates
      CertificationsCE, FM Class I Div. 2, UL, CSA
      cULusNo
      RCM (formerly C-TICK)No
      Ambient conditions
      Mounting positionvertical
      maximum permissible angle of inclination without external ventilation+/- 35 °
      Storage/transport temperature
      ● Transport, storage-20 °C to +60 °C
      Relative humidity
      ● Operation, max.85 %
      Operating systems
      Operating systemWindows CE
      Configuration
      Configuration software
      ● Configuration toolProTool / Lite, Version 5.2 SP 1 or higher or WinCC flexible Compact Version 2004 or higher (to be ordered separately)
      ● 1st configuration kitProTool / Lite
      — VersionVersion 5.2 SP 1
      — Configuration toolProTool
      — TypeLite
      ● 2nd configuration kitWinCC flexible Compact
      — VersionVersion 2004
      — Configuration toolWinCC flexible
      — TypeCompact
      Languages
      Online languages
      ● Number of online/runtime languages5
      Languages
      ● Languages per project32
      Functionality under WinCC (TIA Portal)
      LibrariesYes
      Task plannerYes
      Help systemYes
      ● Number of characters per info text70
      ● Number of tooltips0
      Message system
      ● Number of alarm classes32
      ● Number of messages2 000
      ● Bit messagesYes
      ● Analog messagesYes
      ● Number of bit messages2 000
      ● Number of analog messages2 000
      ● Telegram message procedure Alarm SNo
      ● System messages HMIYes
      ● System messages PLCNo
      ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)No
      ● Message length (in characters)80
      ● Lines1
      ● Number of process values per message8
      ● Acknowledgment groups99
      ● Message indicatorYes
      ● Acoustic feedbackNo
      ● First/last valueYes
      Recipe administration
      ● Number of recipes100
      ● Data records per recipe200
      ● Entries per data record200
      ● Recipe memory32 KB integrated Flash, expandable
      Variables
      ● Number of variables per device1 000
      ● Number of variables per screen50
      ● Number of variables1 000
      ● Initial values1 000
      ● Limit valuesYes
      ● MultiplexingYes
      ● StructsNo
      ● Type Date & Time1 000
      Images
      ● Number of configurable images100
      ● Permanent window/defaultYes
      ● Start screen configurableYes
      ● Image selection by PLCYes
      ● Image number in the PLCYes
      Image objects
      ● Text objects2,000 text elements
      ● Fields per image0
      ● Date/time fields30
      ● Index of screen contextNo
      ● ReturnYes
      ● Graphics objectBit maps, icons, icon (full-screen)
      — Icons500
      — Icon (full screen)50
      Complex image objects
      ● Status/controlNot possible
      ● dynamic objectsDiagrams, bar graphs, invisible buttons
      — Number of objects per project500
      — Number per image5
      ● MethodsTrend
      ● Limit value linesYes
      ● Number of bars per chart5
      ● Limit value linesYes
      ● alphanumeric fields1 000
      ● alphanumeric fields per image100
      ● numerical fields1 000
      ● numerical fields per image100
      ● Password errors1 000
      ● Number of slides per image0
      ● Number of analog indicators per image0
      ● Number of visible switches per project1 000
      ● visible switches per image100
      ● hidden switches per image100
      ● Number of status switches per project1 000
      ● Button status switches per image100
      ● Number of selector switches per project1 000
      ● Selector switches per image100
      ● Number of decade switches per project0
      ● Decade switches per image0
      ● Number of signal lamps per project1 000
      ● Signal lamps per image100
      Attributes for dynamic objects
      ● Color changeYes
      ● X/Y movementYes
      ● HideYes
      ● Angle of turnNo
      Lists
      ● Number of text lists per project300
      ● Number of text lists per image10
      ● Number of entries per text list256
      ● Number of graphics lists per project100
      ● Number of graphic lists per image10
      ● Number of entries per graphics list255
      Security
      ● Number of user groups10
      ● Password export/importYes
      Data carrier support
      ● PC cardNo
      ● CF cardYes
      ● Diskette driveNo
      ● Hard diskNo
      ● CD-ROMNo
      Logging through printer
      ● Recording/PrintingAlarms, report (shift report)
      Transfer (upload/download)
      ● Transfer of configurationMPI/PROFIBUS DP, serial, automatic transfer recognition
      Process coupling
      ● Connection to controllerS5, S7-200, S7- 300/400, TI 505, Win AC, SINUMERIK, SIMOTION, Allen Bradley (DF1), Mitsubishi (FX), Telemecanique (ADJUST), Modicon (Modbus), for further non-Siemens drivers, see section on "System interfaces"
      ● S7-200Yes
      — PPI (point-to-point)Yes
      — PPI networkNo
      — MPIYes
      — PROFIBUS DPYes
      ● S7-300/400Yes
      — MPIYes
      — PROFIBUS DPYes
      — PROFINETNo
      ● S5Yes
      — serialYes
      — PROFIBUS DPYes
      ● TI 505Yes
      ● Allen Bradley (DF1)Yes
      ● Allen Bradley (DF485)No
      ● Mitsubishi (FX)Yes
      ● Mitsubishi (MP4)Yes
      ● Telemechanique (ADJUST)Yes
      ● Telemecanique (Uni-Telway)Yes
      ● OMRON (LINK/Multilink)No
      ● Modicon (Modbus)Yes
      ● GE-Fanuc (SNP)Yes
      Functions
      ● Key repeatNo
      ● TAB sequenceYes
      ● Calculating functionsYes
      ● AnimateYes
      ● Menu tree editorNo
      ● Unit switchoverNo
      Service tools/configuration aids
      ● Clean screenYes
      ● Touch calibrationYes
      ● Backup/restoreYes
      ● SimulationYes
      ● Device switchoverYes
      ● Delta transferYes
      ● Monitoring function for battery and memoryYes
      ● Trace (operation archive)No
      Expandability/openness
      ● Open Platform ProgramYes
      I/O / Options
      I/O devicesPrinter
      ● MultiMediaCardNo
      ● SD cardNo
      ● USB memoryNo
      Dimensions
      Width of the housing front212 mm
      Height of housing front156 mm
      Weights
      Weight (without packaging)0.7 kg
      other
      free hotlineYes
      Warranty period1 y
