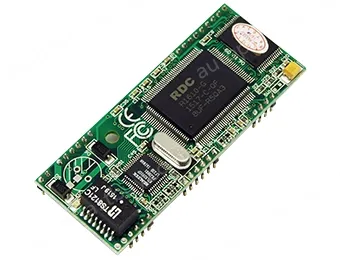

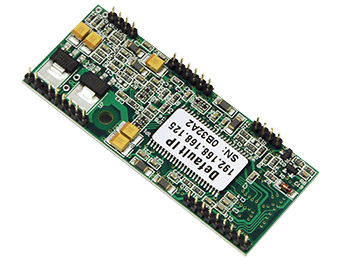

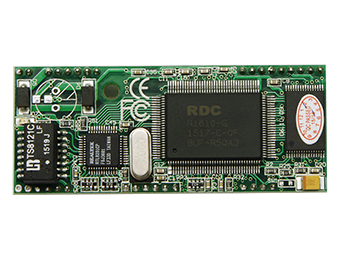

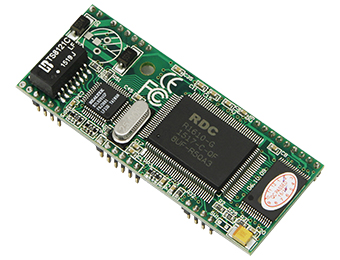

UT-450 10/100M TCP/IP is a serial bridge module which converts TCP/IP to serial port (TTL). It provides with TCP/IP network to serial signal transparent conversion, and easily brings your SCM into network interface. UT-450 uplinks 10/100M Ethernet interface, downlinks 1 standard serial interface; it is built-in with integrated ARP, IP, ICMP, UDP, SOCK5, and http protocols; and it supports dynamic IP, static IP, gateway, and proxy server
Three working modes:
- As TCP server, the converter monitors the connection request from the platform program in specified TCP ports
- As TCP client, when the converter is on power, it sends connection request to platform program actively
- On automatic mode, the converter usually works at TCP server mode. When the converter receives serial data, it switches to TCP client mode; the converter will send connection request to the platform program, and transmit the data to the platform; once finish transmission, the converter switches to TCP server mode.
The program can receive and transmit data with converter by below 3 modes:
- Socket
- ActiveX (Winsock.ocx)
Virtual serial port (When using virtual serial port, the serial data of the controller can real-time synchronous with virtual serial data)
- Connect mode: TCP server, UDP server, TCP client & UDP client
- Get IP address from DHCP server (Gateway); conflicts in IP address are refrained by IP allocation
- PPPoE, connects to the Internet by ADSL Modem dialing Built-in DNS, can get one fix domain name to match any dynamic IP addresses, which helps the host monitors directly manage without any fix IP address
- Auto-detect 10/100Mbps
- Built-in networking management system
- Data backups & recovery setting

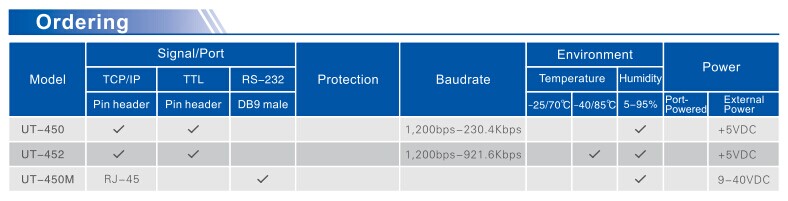

Specification
Network: comply with IEEE 802.3 10/100M interface
Serial port: TTL
Serial port transmission rate: 1,200bps-230.4Kbps
Data flow: XON/XOFF or RTS/CTS
Operating voltage: 5VDC
Operating current: 200mA
Transmission media: twisted-pair or shield twisted-pair
Operating temperature: -25℃ to 70℃
Relative humidity: 5% to 95%
Supports WIN95/WIN98 ME/WIN2000/NT/XP Linux UNIX
