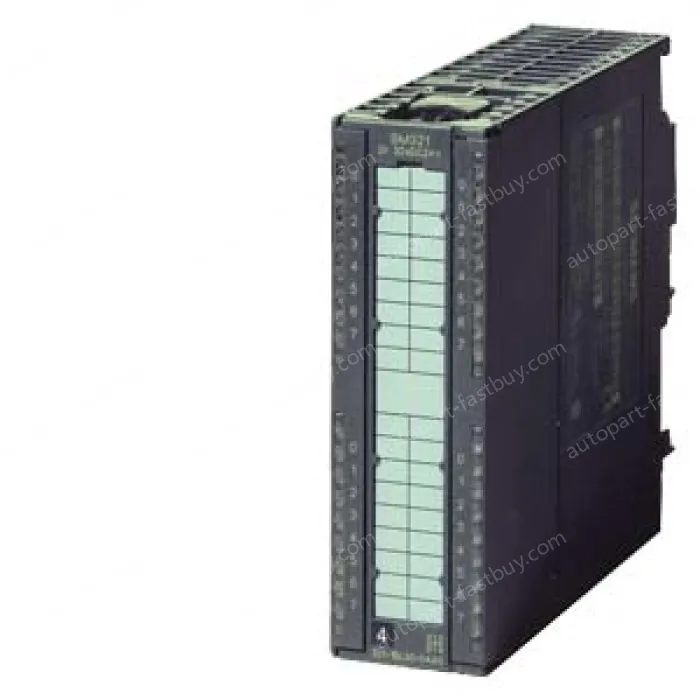

Model | SM321 Number of digital inputs:16 |
Product Description | 16DI,24V DC; High immunity;stable |
Power consumption | |
·From bus current consumption | 17mA |
·Power loss | 3.5W |
Number of digital inputs | 16 |
Cable Length (Shielded) | 1,000m |
Cable Length (unshielded) | 600m |
Input voltage | |
·Rate value | 24V DC |
·For ”0” signal | -30~5V DC |
·For ”1” signal | 13~30V DC |
·Frequency range | / |
Input current | 7mA |
Input delay |
|
·From “0” to “1”,Min | 1.2~4.8ms |
·From “1” to “0”,Min | 1.2~4.8ms |
Front connector | 20-pin |
Input type | NPN |
Connection of 2-wire BERO sensor | Yes |
Permissible quiescent current | 1.5mA |
Isolation tested for contact |
|
·Between channel and backplane bus | Yes |
·Per group between channels | Yes |
The status indicates | Green LED each channel |
Dimensions(WxHx D)(mm) | 40×125×120 |
Order Number | 321-1BH02-0AA0 |
