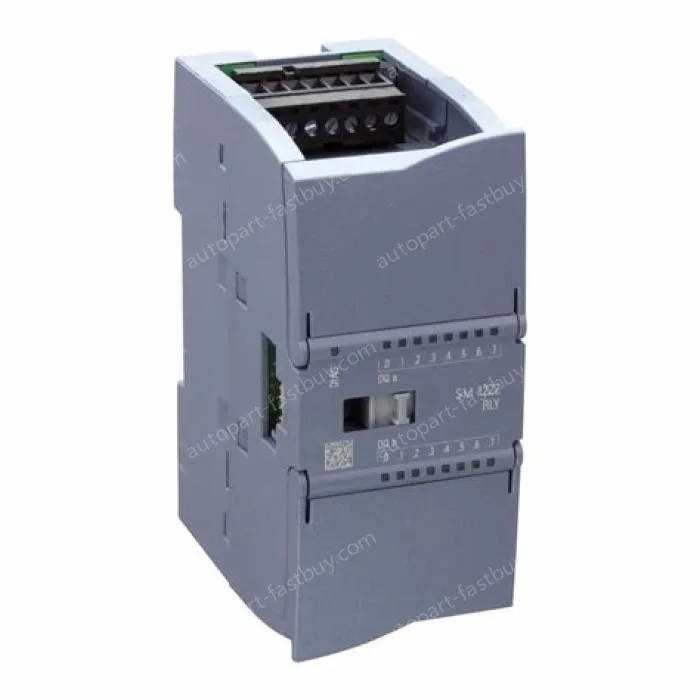

6ES7222-1HH32-0XB0 DIGITAL OUTPUT SM1222, 16 DO, RELAY

Artikelnummer

6ES7222-1HH32-0XB0

		SIMATIC S7-1200, DIGITAL OUTPUT SM 1222, 16 DO, RELAY 2A
Supply voltage
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
from backplane bus 5 V DC, max.		135 mA
Digital inputs
● from load voltage L+ (without load), max.		11 mA/relay coil
Power losses
Power loss, typ.		8.5 W
Digital inputs
Number of digital inputs		0
Digital outputs
Number of digital outputs		16
● In groups of		1
short-circuit protection		No; to be provided externally
Switching capacity of the outputs
● with resistive load, max.		2 A
● on lamp load, max.		30 W with DC, 200 W with AC
Output voltage
● Rated value (AC)		5 V AC to 250 V AC
● Rated value (DC)		5 V DC to 30 V DC
Output current
● for signal "1" permissible range, max.		2 A
Output delay with resistive load
● "0" to "1", max.		10 ms
● "1" to "0", max.		10 ms
Aggregate current of outputs (per group)
horizontal installation
— up to 50 °C, max.		10 A; Current per mass
Relay outputs
● Number of relay outputs		16
● Rated input voltage of relay coil L+ (DC)		24 V
● Number of operating cycles, max.		mechanically 10 million, at rated load voltage 100,000
Switching capacity of contacts
— with inductive load, max.		2 A
— on lamp load, max.		30 W with DC, 200 W with AC
— with resistive load, max.		2 A
Cable length
● Cable length, shielded, max.		500 m
● Cable length unshielded, max.		150 m
Interrupts/diagnostics/status information
Alarms
● Alarms		Yes
● Diagnostic alarm		Yes
Diagnostic messages
● Diagnostic functions		Yes
● Monitoring the supply voltage		Yes
Diagnostics indication LED
● For status of the outputs		Yes
● for maintenance		Yes
● Status indicator digital output (green)		Yes
Galvanic isolation
Galvanic isolation digital outputs
● between the channels		Relays
● between the channels, in groups of		4
● between the channels and the backplane bus		1500 V AC for 1 minute
Permissible potential difference
between different circuits		750 V AC for 1 minute
Degree and class of protection
Degree of protection to EN 60529
● IP20		Yes
Standards, approvals, certificates
CE mark		Yes
CSA approval		Yes
UL approval		Yes
cULus		Yes
RCM (formerly C-TICK)		Yes
FM approval		Yes
Marine approval
● Marine approval		Yes
Climatic and mechanical conditions for storage and transport
Climatic conditions for storage and transport
Free fall
— Drop height, max. (in packaging)		0.3 m; five times, in dispatch package
Temperature
— Permissible temperature range		-40 °C to +70 °C
Air pressure acc. to IEC 60068-2-13
— Permissible air pressure		1080 to 660 hPa
Relative humidity
— Permissible range (without condensation) at 25 °C		95 %
Mechanical and climatic conditions during operation
Climatic conditions in operation
Temperature
— Permissible temperature range		-20 °C to +60 °C horizontal mounting, -20 °C to 50 °C vertical mounting, 95% humidity, non-condensing
— Min.		-20 °C
— max.		60 °C
— Permissible temperature change		5°C to 55°C, 3°C / minute
Connection method
required front connector		Yes
Mechanics/material
Type of housing (front)
● plastic		Yes
Dimensions
Width		45 mm
Height		100 mm
Depth		75 mm
Weights
Weight, approx.		260 g
last modified:		13.10.2014

6ES7222-1HH32-0XB0

ProductArticle Number (Market Facing Number)6ES7222-1HH32-0XB0Product Description SIMATIC S7-1200, Digital output SM 1222, 16 DO, relay 2 AProduct familySM 1222 digital output modulesProduct Lifecycle (PLM)PM300:Active ProductPrice dataRegion Specific PriceGroup / Headquarter Price Group212 / 212List Price Show pricesCustomer Price Show pricesSurcharge for Raw MaterialsNoneMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : EAR99HEstimated dispatch time1 Day/DaysNet Weight (kg)0,242 KgPackaging Dimension8,90 x 10,60 x 5,70Package size unit of measureCMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN6940408101968UPC887621217693Commodity Code85389091LKZ_FDB/ CatalogIDST72Product Group4508Group CodeR132Country of originChinaCompliance with the substance restrictions according to RoHS directiveSince: 15.03.2013Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.WEEE (2012/19/EU) Take-Back ObligationYesREACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Lead monoxide (lead oxide)

lblREACHCode0236 > 0, 1 % (w / w)

lblREACHCode0236

SCIP number

Classifications

	Version	Classification
eClass	12	27-24-22-04
eClass	6	27-24-22-04
eClass	7.1	27-24-22-04
eClass	8	27-24-22-04
eClass	9	27-24-22-04
eClass	9.1	27-24-22-04
ETIM	7	EC001419
ETIM	8	EC001419
ETIM	9	EC001419
IDEA	4	3566
UNSPSC	15	32-15-17-05
