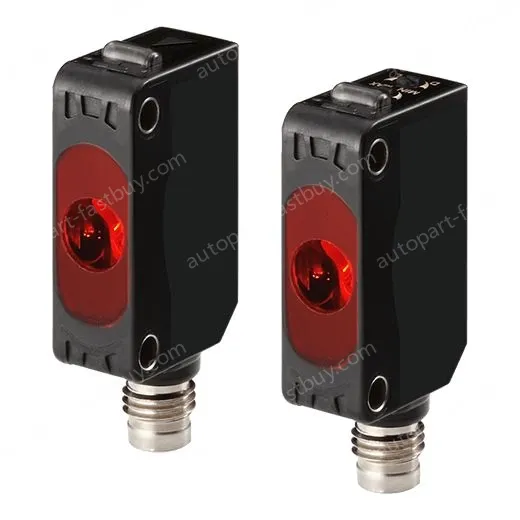

      BJ10M-TDT-C
      The BJ series compact photoelectric sensors feature high performance and excellent noise immunity for accurate and reliable presence detection. Light ON/Dark ON operation mode switch and sensitivity adjusters are available for easy configuration and set up (except BJG-DDT). The sensors are available in various types and options, making it ideal for diverse applications. The BJ series is available in long distance type, BGS (background suppression) reflective type, transparent glass sensing type, and micro spot types, and the sensors are available in cable types and connector types (long distance type models).
      BJ10M-TDT-C
      Sensing type Through-beam type
      Sensing distance 10m
      Sensing target Opaque material of min. Ø12mm
      Light source Red LED(660nm)
      Response time Max. 1ms
      Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
      Current consumption Emitter/Receiver: Max. 20mA
      Sensitivity adjustment Sensitivity adjuster
      Operation mode Light ON/Dark ON(set by switch)
      Control output NPN open collector
      Connection type Connector type(M8)
      Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
      Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃
      Protection structure IP67
      Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
      Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,
      Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,
      Sleeve: Brass, Ni-plate
      Accessories_Common Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver
      Weight Approx. 45g (approx. 20g)
