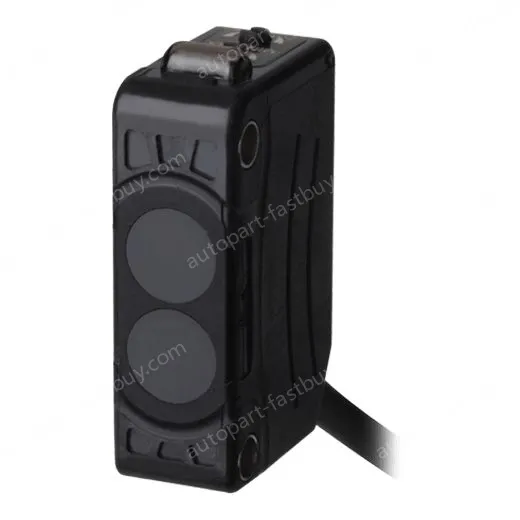

      BJ100-DDT-P
      • BJ100-DDT-P

      BJ100-DDT-P

      ★ ★ ★ ★ ★ 4.9 4018 Reviews Certified

      Model: BJ100-DDT-P

      Order No:

      SKU: 10000040450301

      Category: Photoelectric sensors

      Brand: AUTONICS

      Condition: New Sealed Under Guarantee

      Size: 0.00mm, 0.00mm, 0.00mm; Diam:0.00cm

      Weight: 70.00g

      Product Selection Engineer: Zuohuiqin

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews
      BJ100-DDT-P
      The BJ series compact photoelectric sensors feature high performance and excellent noise immunity for accurate and reliable presence detection. Light ON/Dark ON operation mode switch and sensitivity adjusters are available for easy configuration and set up (except BJG-DDT). The sensors are available in various types and options, making it ideal for diverse applications. The BJ series is available in long distance type, BGS (background suppression) reflective type, transparent glass sensing type, and micro spot types, and the sensors are available in cable types and connector types (long distance type models).
      BJ100-DDT-P
      Sensing type Diffuse reflective type
      Sensing distance 100mm
      Sensing target Opaque, Translucent material
      Light source Infrared LED(850nm)
      Response time Max. 1ms
      Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
      Current consumption Max. 30mA
      Sensitivity adjustment Sensitivity adjuster
      Operation mode Light ON/Dark ON(set by switch)
      Control output PNP open collector
      Connection type Cable type(Ø3.5, 2m)
      Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
      Environment_Ambient temperature -25 to 55℃, storage: -40 to 70℃
      Protection structure IP65
      Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
      Hysteresis(distance) Max. 20% of sensing distance
      Material Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,
      Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,
      Sleeve: Brass, Ni-plate
      Accessories_Common Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
      Weight Approx. 70g (approx. 45g)
