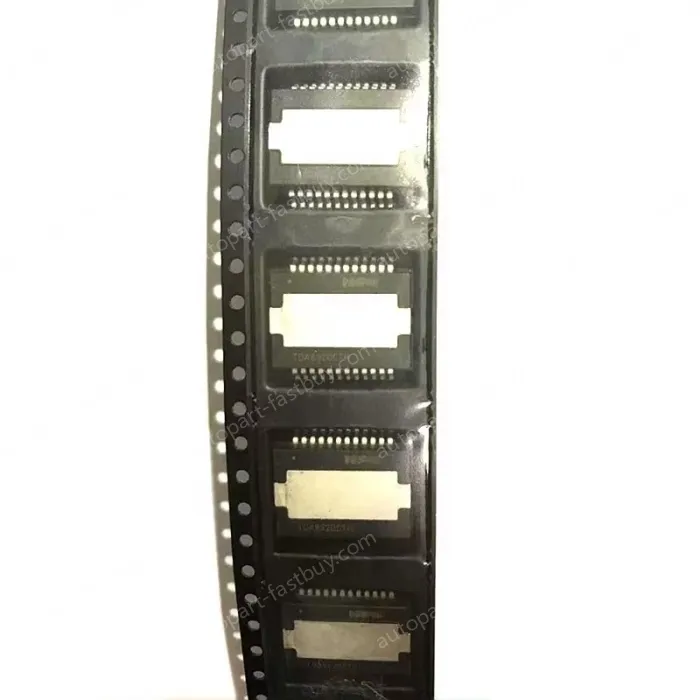

The TDA8920C is a high-efficiency class-D audio power amplifier. The typical output
power is 2 × 110 W with a speaker load impedance of 4 Ω.
The TDA8920C is available in both HSOP24 and DBS23P power packages. The amplifier
operates over a wide supply voltage range from ±12.5 V to ±32.5 V and features low
quiescent current consumption. ■ Pin compatible with TDA8950/20B for both HSOP24 and DBS23P packages
■ Symmetrical operating supply voltage range from ±12.5 V to ±32.5 V
■ Stereo full differential inputs, can be used as stereo Single-Ended (SE) or mono
Bridge-Tied Load (BTL) amplifier
■ High output power in typical applications:
◆ SE 2 × 110 W, RL = 4 Ω (VP = ±30 V)
◆ SE 2 × 125 W, RL = 4 Ω (VP = ±32 V)
◆ SE 2 × 120 W, RL = 3 Ω (VP = ±29 V)
◆ BTL 1 × 220 W, RL = 8 Ω (VP = ±30 V)
■ Low noise
■ Smooth pop noise-free start-up and switch off
■ Zero dead time switching
■ Fixed frequency
■ Internal or external clock
■ High efficiency
■ Low quiescent current
■ Advanced protection strategy: voltage protection and output current limiting
■ Thermal FoldBack (TFB)
■ Fixed gain of 30 dB in SE and 36 dB in BTL applications
■ Fully short-circuit proof across load
■ BD modulation in BTL configuration
