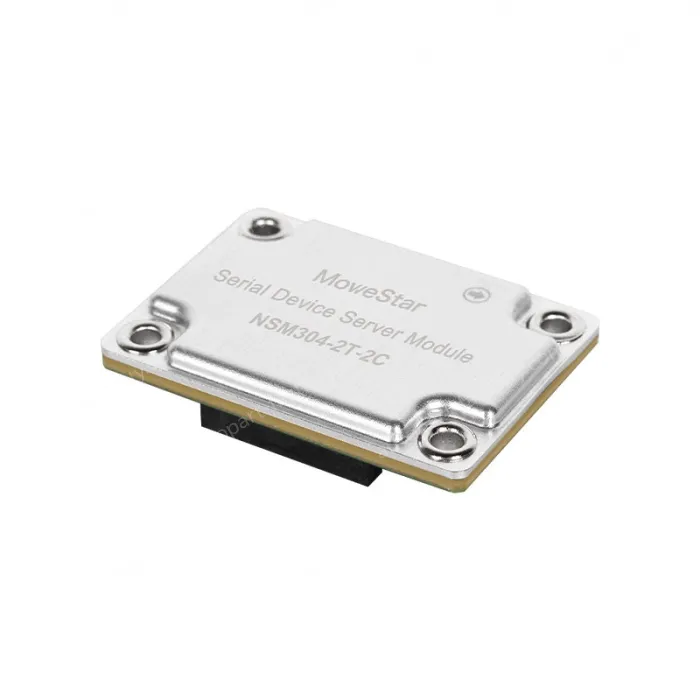

Industrial serial port server series products, mainly realize the data transmission between Ethernet and serial port (RS-232/RS-485/RS-422), it integrates the TCP/IP protocol stack, RS-232/RS-485/RS-422 devices that are not connected to the Internet can also be easily, flexibly and quickly connected to Ethernet. The series of products use high-performance ARM chip to ensure stable data transmission; Support a variety of working modes to meet different application requirements; Excellent anti-interference performance, suitable for harsh industrial environments.
Benefits:
1: Support 1 x 100 Gigabit Ethernet interface, optional 4 x RS232/485/422 serial port, or 2 x RS232/485/422 serial port + 2 x CAN bus interface;
2: Support serial port, CAN terminal equipment networking, convert UDP, TCP, Modbus, HTTPD, WebSocket and other protocols, support virtual serial port;
3: Support CAN to serial port, support transparent conversion, transparent band identification conversion, format conversion, Modbus and other conversion methods;
4: Compact structure and small size, easy to install, maintain and PCB board;
5: Support DC3.3V(3~3.6VDC) power input;
6: Support -40~85°C working temperature to meet the needs of industrial environment applications.
| Product parameters | |
| Power Specifications | Operating Voltage: Input Voltage: DC 3.3V(3~3.6VDC) Operating current: 220mA@3.3V Connection: 2 x 1.27mm pitch 2*16P SMD female headers (including all interface pins) |
| Ethernet interface | Number of ports: 1 Port rate: 10/100MbpsMDI/MDIX: automatic switching Electromagnetic isolation: 1.5kV |
| Serial | Number of serial ports: 2 or 4 channels optional Serial port type: 3.3V TTL level, support RS232/485/422 optional Baud rate: 600bps-921600bps Data bits: 7 bits, 8 bits Stop bits: 1 bit, 2 bits Check digits: no check, odd check, even check Conversion modes: UDP, UDP Multicast, TCP Client, TCP Server, Modbus, RTU Master, Modbus RTU Slave, Modbus ASCII Master, and Modbus |
| CAN port (optional) | Number of CAN ports: 2 CAN bus interfaces CAN port type: 3.3V TTL level Baud rate: 5kbps-1000kbps (custom 2.5kbps~1000kbps partial baud rate) CAN mode: normal mode, loopback mode, monitor mode Conversion modes: UDP, UDP Multicast, TCP Client, TCP Server, Pair Connection Master, Pair Connection Slave, Modbus TCP Slave, etcRelay Mode、CAN to Serial、 Httpd Client、WebSocket Client |
| System administration | DHCP Client、DNS User, guest, and administrator account management Serial port and CAN port statistics, network logs CAN port, serial port, device restart, no data device restartDevice upgrade and factory reset |
| Light | It supports running indicator pins such as RUN, Link/ACT, Speed, and serial |
| Working environment | Operating temperature: -40~85°C Storage temperature: -40~85°C Humidity: 5%~95% (no condensation) |
| Mechanical parameters | Physical Dimensions (L×W×H): 45×32×9.9(mm) |
| Warranty | 5 years |
| Software Features | It supports web login and image upgrade, and supports local system logs, remote logs, and local log storage on a regular basis The wired rescue network is supported, and the device can log in https://6.6.6.6 access the device through the wired network when the network is abnormal The SOS rescue SSID is supported, and the SOS-XXXX rescue SSID (the associated password is Admin-985#) is automatically released when the network of the device in AP mode is abnormal, and the https://8.8.8.8 is used to access the device after association Firewall, port forwarding, IP/MAC filtering, domain name blacklist and whitelist, DMZ and UPnP, and DHCPServer are supported IP/MAC binding, static routing, PPPoE, and static IP are supported Support peanut shell intranet penetration and dynamic domain name resolution DDNS VPNClient (PPTP/L2TP/OPENVPN/GRE/IPSEC) VPNServer (PPTP/L2TP/IPSEC) It supports external dog watch, button restart and factory reset functions, and supports software immediate restart and scheduled restart functions Network diagnostics: Ping, Traceroute, and Tcpdump (network packet capture tool) It supports five working modes: routing, AP, trunk, bridging and client, and supports virtual SSID and SSID hiding Support user isolation and adjustable transmit power, and support country code setting Supports Wi-Fi short protection intervals, packet fragmentation thresholds, and RTS thresholds SNMP protocol, SNMPTrap reporting, and LLDP protocol are supported |
