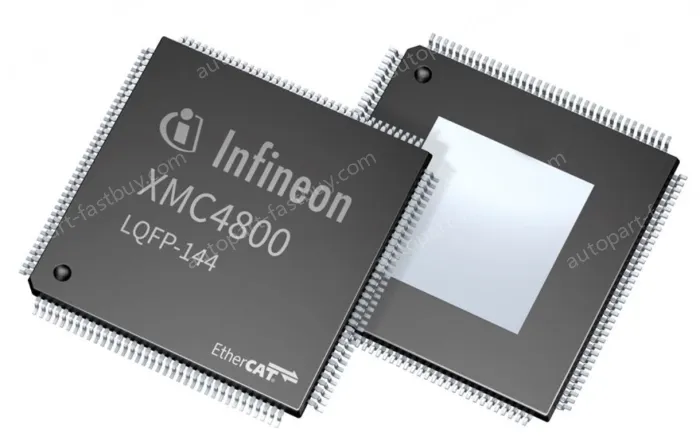

The XMC4800 device is a member of the XMC4000 family of microcontrollers based on the ARM Cortex-M4 processor core. The growing complexity of today's energy efficient embedded control applications are demanding microcontroller solutions with higher performance CPU cores featuring DSP and FPU capabilities. The XMC4800 family of microcontrollers take advantage of Infineon's decades of experience in the industrial market to provide an optimized solution to meet the performance challenges of today's embedded control applications. First-ever EtherCAT ® node on an ARM ® Cortex ®-M microcontroller with on-chip flash and analog/mixed signal capabilities. Summary of Features: ARM ® Cortex ®-M4 @ 144MHz

2048kB Flash, 352kB RAM

Data and IP Protection on Flash

Supply voltage range: 3.13 - 3.63V

EtherCAT ® node

6 x CAN nodes

EthernetMAC, USB-OTG, SD/MMC

6 channel USIC (configurable to SPI, UART, IIC, IIS)

External Bus Unit

4 x 12-bit ADC, 26 input channels, 4 x parallel sampling and conversion

2 channel 12bit DAC4 channel ∆Σ Demodulator

24 x 16-bit special purpose timers, dead time generation

2 x Position Interface

Watch Dog Timer, Real Time Clock

XMC4000 Functional Safety Package

Package: LQFP144

Temperature range:-40 - 125°C

SDIO/SD/MMC InterfaceARM ® Cortex ®-M4 @ 144MHz

2048kB Flash, 352kB RAM

Data and IP Protection on Flash

Supply voltage range: 3.13 - 3.63V

EtherCAT ® node

6 x CAN nodes

EthernetMAC, USB-OTG, SD/MMC

6 channel USIC (configurable to SPI, UART, IIC, IIS)

External Bus Unit

4 x 12-bit ADC, 26 input channels, 4 x parallel sampling and conversion

2 channel 12bit DAC

4 channel △Σ Demodulator

24 x 16-bit special purpose timers, dead time generation

2 x Position Interface

Watch Dog Timer, Real Time Clock

XMC4000 Functional Safety Package

Package: LQFP144

Temperature range:-40 - 125°C

SDIO/SD/MMC Interface
