IEEE Standard

802.3,802.3u,802.3z,802.3ab

Protocol

CSMA/CD

Processing Type

Store and Forward

Backplane bandwidth

56Gbps

Memory Buffer

4.1Mbit

MAC address table

8K

Transfer Rate

14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port

Jumbo Frame

10000byte

Gigabit port

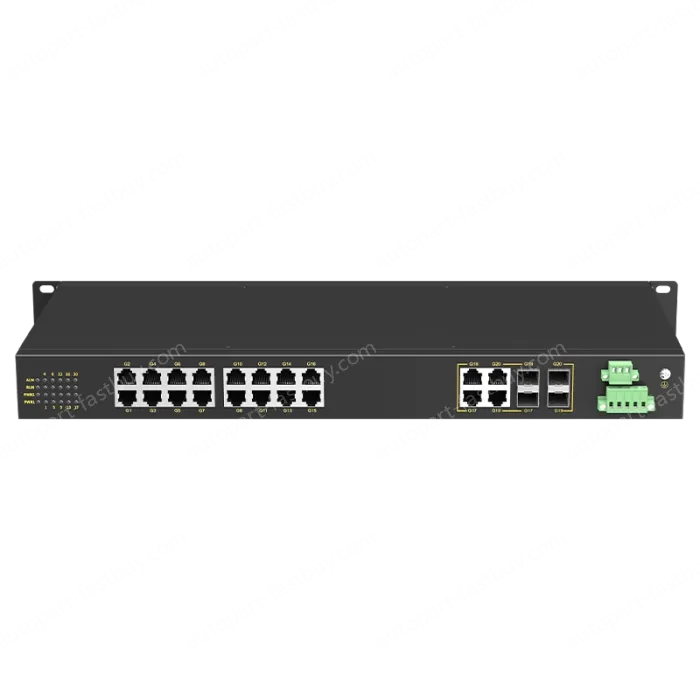

16 * 10/100/1000Base-T+4 *1000Base-LX ports or 20 *10/100/1000Base-T

Copper port parameters

Physical interface: RJ45 with shielding, IEEE802.3 standard

RJ45 port: 10/100/1000Base-T (Gigabit) supports auto-negotiation function

Transmission distance: 100 meters (standard CAT5/CAT5e cable)

Fiber port parameters

Luminous power: >-12dBm (single mode) >-17dBm (multimode)

Receiver sensitivity: <-38dBm (single mode) <-35dBm (multimode)

Wavelength: 1310nm (single-mode) 1550nm (single-mode)

850 nm (multi-mode) 1310 nm (multi-mode)

Transmission distance:

multimode fiber 850nm, 2km; 1310 nm, 2/5km

Single-mode fiber 1310nm, 20/40/60km; 1550nm, 20/40/60/80/120km

Connector Type: LC

Transmission rate: 1.25Gbps (Gigabit)

Power parameters

Input voltage: 220AC/DC (85-264VAC/110-370VDC), complied with the requirements of SELV

Input power consumption: 24W (MAX)

Over current Protection: Built-in

Mechanical parameters

Physical Dimensions (W×H×D): 482.6mm×44mm×210mm

Installation method: standard 19' 1U rack type

Heat dissipation form: aluminum alloy single rib chassis surface heat dissipation

Outlet form: front and rear

Case protection: IP40

Working environment

Working temperature: -40℃~+70℃

Storage temperature: -40℃~+85℃

Humidity: 5%~95% (non-condensing)

EMI

FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A

EMC standard

CE EN 55024 Class A, EN61000-6-2 Class A

IEC61000-4-2(ESD),Level4

IEC61000-4-5(Surge),Level4※The network port supports 6KV lightning protection

IEC61000-4-4(EFT),Level4

IEC61000-4-3(RS),Level4

IEC61000-4-6(CS),Level4

EN61000-4-8, Level 5
