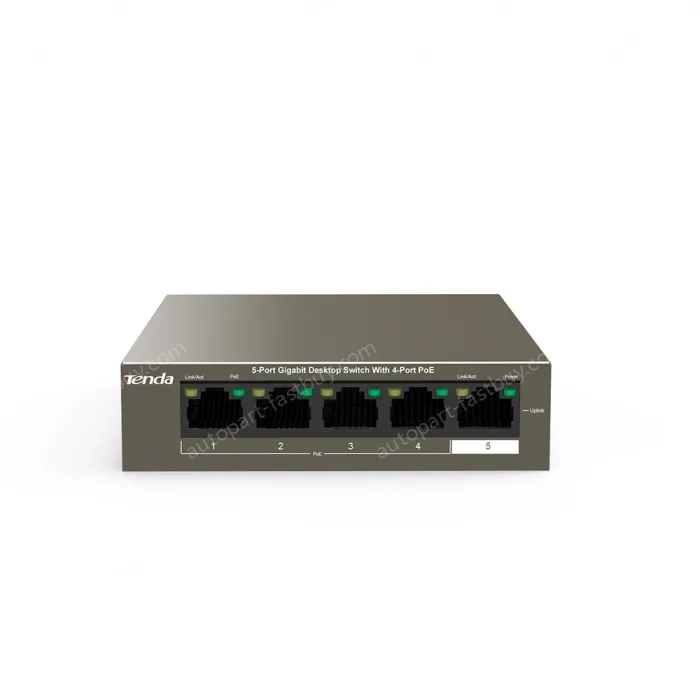

TEG1105P-4-63W is a Tenda PoE switch that offers 5*10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras.
5 10/100/1000 Mbps Base-T RJ45 port;Ports 1-4: IEEE 802.3af/at PoE ports
maximum power output of each PoE port: 30 W; maximum power output of the switch: 58 W
Desktop size,Power Adapter Output 63W
Support One-Key VLAN, Port 1-4 will be isolated respectively but can communicate with the 5 port
| Network standards | IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| LED Indicator | 5* Link/Ack LED indicators 1 * Power LED indicator |
| Interfaces | 5*10/100/1000 Base-T Ethernet Ports(Data/Power) 1*10/100/1000 Base-T Ethernet Port(Data) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 100.0mmx100.0mmx27.0mm |
| Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 10 Gbps |
| Packet forwarding rate | 7.44Mpps |
| Buffer | 1M |
| MAC address table | 2K |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 58W |
| Power consumption | / |
| Input voltage | 100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ） |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Funtions | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing. |
