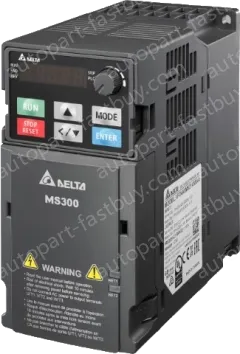

VFD4A8MS21AFSAA
compact inverter, 0.75kW, 230V/ single phase, 4.8A, standard type, IP20 / UL Open Type, built-in EMC filter
| Input Power (V) | 230V 1-Phase |
| Output Current (A) | 4.80 |
| Control methods | IMVF ; IMVFPG ; IMSVC (Space Vector Control) ; IMFOC (Field Oriented Control) Sensorless ; PMSVC |
| Built-in EMC filter | Yes |
| Built-in DC reactance | No |
| Built-in brake crystal | Yes |
| Motor Power (kW) | 0.75 |
| Degree of protection | IP20/UL Open Type |
| version | Wall Mount |
| Safe torque shut-off | Yes |
| Motor type | Induction Motor(IM) ; Interior Permanent Magnet Motor(IPM) ; Surface Permanent Magnet Motor(SPM) |
| Numeric Inputs (points) | 7 |
| Digital Outputs (Points) | 2 |
| Relay Outputs (points) | 1 |
| Analog Input 0~10V (points) | 1 |
| Analog Input: -10~10V (points) | 1 |
| Analog Input 0~20mA (points) | 1 |
| Analog Input: 4~20mA (points) | 1 |
| Analog output 0~10V (points) | 1 |
| Analog output -10~10V (points) | 0 |
| Analog output: 0~20mA (points) | 1 |
| Analog output: 4~20mA (points) | 1 |
| Degree of contamination | 2 |
| Humidity (%) | 90.00 |
| The type of load | Constant Torque ; Fan & Pump Application |
| The type of work style | Normal Duty ; Heavy Duty |
| Built-in PLC | Yes |
| Support external power supply card | Yes |
| No. 1 slot card | Yes |
| Slot 2 card | No |
| No. 3 slot card | Not Available |
| Minimum Carrier Frequency (kHz) | 2 |
| Maximum Carrier Frequency (kHz) | 15 |
| Maximum Output Frequency (Hz) | 599.00 |
| Drive type | Single Drive |
| Type of inverter module | Single Axis |
| Rectifier module type | Not Applicable |
| Component type | Inverter Module |
| The inverter module is driven into the voltage | Not Applicable |
| Built-in motor | Not Applicable |
