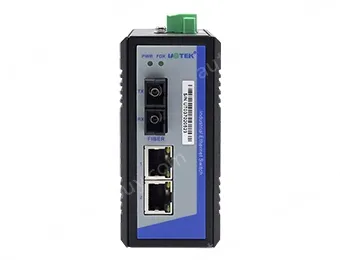

UT-2602-220 series is a 100M network fiber optic transceiver, providing 2 10/100Base-TX Ethernet ports and 1 100Base- FX optical port; it is used for Ethernet port and optical cable data communication, it is suitable for the scenarios of intelligent community or FTTD(fiber to the desk).The series of products support -40 ~ 85°C operating temperature and good EMC performance to ensure normal operation in harsh environments, the series will greatly extend the distance of network transmission, can easily achieve the interconnection between the main board server, repeater, hub, terminal and terminal, for video surveillance, finance, education and other industries to form a network to provide cost-effective, safe and reliable solutions.

• Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
• Supports full-duplex and half-duplex, auto negotiation
• Auto-10/100Mbps
• Fully automatic recognition of network interface
• Plug and play for easy access
• Operating temperature: -40 ~ 85°C
• Voltage input: 110/220VAC (88~264VAC)/50-60Hz or 110/220VDC (88~264VDC)

>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

>>Interfaces

Fiber interfaces: 1*100Base-FX（SC/FC/ST）

RJ45 interface: 2*10/100Base-TX, auto MDI/MDI-X

>>Transmission distance

Cat.5e: 100m

Fiber Optic Module

Single-mode: 1310nm 20/40/60Km

1550nm 80/100/120Km

Multimode: 1310nm 2Km

>>Switching Performance

Forwarding Rate: 148810pps

Transmission mode: Store and Forward

MAC address size: 1K

Cache size: 0.5Mbit

Max. frame length: 1.2G

>>Power Requirement

Voltage input: 110/220VAC (88-264VAC) 50-60Hz or 110/220VDC (88-264VDC)

Power consumption: 5W

Terminal block: One pluggable 3-pin terminal block

>>LED indicator light

PWR power light, FDX fiber indicator, RJ network indicator

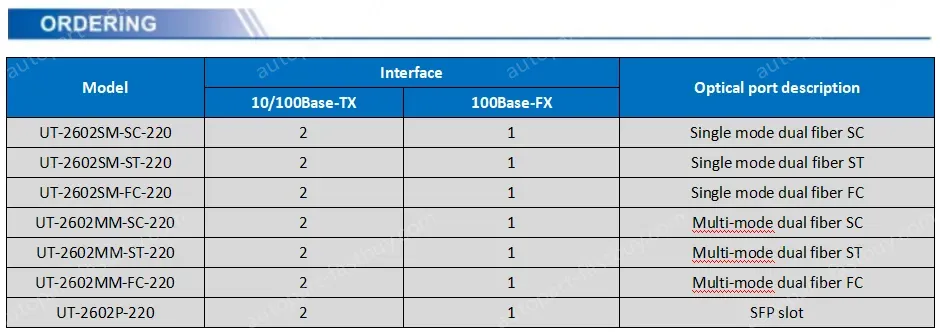

For example: UT-2602RSM-SC-40-220, “R”is receiving single fiber, “SM” is single mode, “SC” fiber interface type is SC head, “40” transmission km for 40km

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail/Wall Mounted

>>Mechanical Dimension

Dimension (W x H x D): 100mm x 85mm x 47.2mm

Weight: 560g

Packaging dimension: 190mm x 182mm x 65mm

>>Operating Environment

Operating temperature: -40 ~ 85°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95%

>>Industrial Standards

EMI:

FCC Part 15 Subpart B class A, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
