The Star shifting interface converter products include three major series:
Industrial serial optical fiber converter can convert the industrial site RS232/485/422 serial electrical signal into optical fiber signal transmission, to achieve long-distance transmission requirements, improve signal anti-interference ability;
Industrial serial cable converter, to achieve the industrial site RS232 and RS485/422 signals between the conversion, as well as multiple serial bus concentrator function, provide active/passive, isolated/non-isolated and other types of choice;
Industrial serial port repeater can realize the isolation relay function of RS232/485/422 signal in industrial field. By isolating and amplifies the signal, it can extend the communication distance and anti-interference.
Benefits:
- Support 1 channel CAN-bus to optical fiber
- Support-40~85°C wide temperature operation
- The signal flow direction is automatically identified, and there is no need to change the user agreement
- 600W/ms lightning protection, 15KV electrostatic protection
- Industrial-grade design, stable and reliable

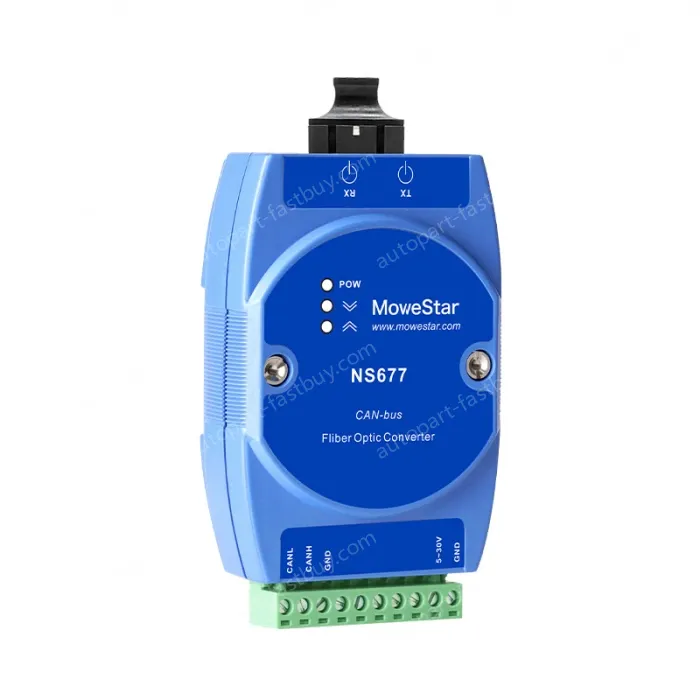

Product model | NS677-F |
Description of the function | CAN-bus fiber converters |
Electricity | DC5~30V DC power input |
Operating current | ≤200mA |
Communication rate | 300-300K（bps） |
Communication distance | Multimode (-M): 2km Single-mode (-S): 20km (40/60/80km optional.)) |
Electrical interfaces | 10-position industrial-grade terminal block |
Optical interface | SC, ST, FC are optional |
Optical power and sensitivity | Single-mode 20km: optical power ≥-8dBm, sensitivity ≤-20dBm; |
Applicable to optical fibers | Multimode 62.5/125μm or 50/125μm, singlemode 9/125μm |
Ingress protection | EN61000-4-2(ESD)：Leve 4 EN61000-4-5(Surge)：Leve 3 |
Ber | ≤10⁻⁹ |
Size | 90mm×70mm×30mm (excluding terminal blocks and optical interface components.)) |
Installation: | Rail type |
Operating temperature | -40℃～85℃ |
