      6GK7542-1AX00-0XE0
      • 6GK7542-1AX00-0XE0
      • 6GK7542-1AX00-0XE0
      • 6GK7542-1AX00-0XE0

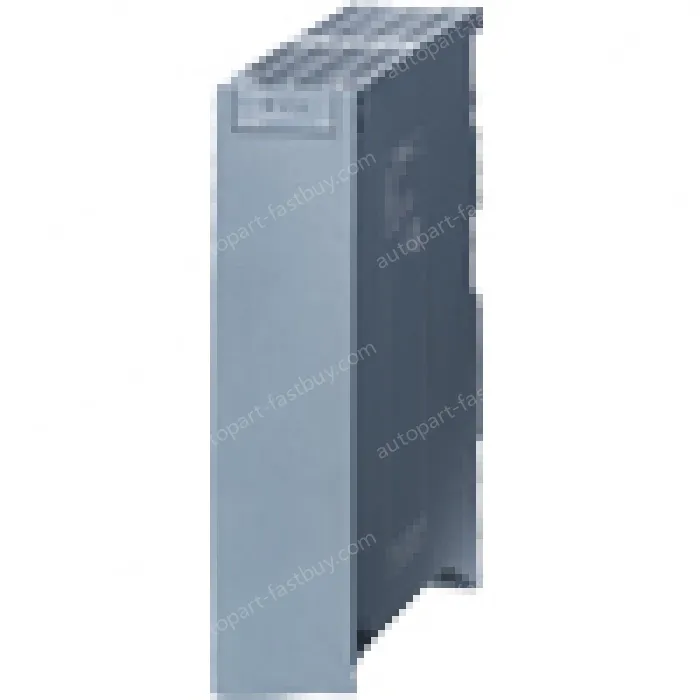

      6GK7542-1AX00-0XE0

      ★ ★ ★ ★ ★ 4.9 1555 Reviews

      Model: 6GK7542-1AX00-0XE0

      Order No:

      SKU: 10000005932601

      Category: Communication module

      Brand: SIEMENS

      Condition: New Sealed Under Guarantee

      Size: 0.00cm, 0.00cm, 0.00cm; Diam:0.00cm

      Weight: 2.00kg

      Product Selection Engineer: wuShengpeng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews
      6GK7542-1AX00-0XE0 COMMUNICATION MODULE CM 1542-1
      Artikelnummer6GK7542-1AX00-0XE0
      Product type designationCM 1542-1
      COMMUNICATIONS MODULE CM 1542-1 FOR CONNECTING S7-1500 TO PROFINET AS IO-CONTROLLER: TCP/IP, ISO-ON-TCP, UDP, S7-COMMUNICATION, IP-BROADCAST/ MULTICAST, SNMPV1, DHCP, CLOCK SYNCHRONISATION VIA NTP, 2XRJ45 (10/100 MBIT)
      Transmission rate
      Transfer rate
      ● at the 1st interface10 ... 100 Mbit/s
      Interfaces
      Number of interfaces / acc. to Industrial Ethernet0
      Number of electrical connections
      ● at the 1st interface / acc. to Industrial Ethernet2
      Design of the electrical connection
      ● at the 1st interface / acc. to Industrial EthernetRJ45 port
      Supply voltage, current consumption, power loss
      Type of voltage / of the supply voltageDC
      Supply voltage / 1 / from backplane bus15 V
      Relative symmetrical tolerance / for DC
      ● at 15 V3 %
      Consumed current
      ● from backplane bus / for DC / at 15 V / typical0.22 A
      Active power loss3.3 W
      Permitted ambient conditions
      Ambient temperature
      ● for vertical installation / during operation0 ... 40 °C
      ● for horizontally arranged busbars / during operation0 ... 60 °C
      ● during storage-40 ... +70 °C
      ● during transport-40 ... +70 °C
      Relative humidity / at 25 °C / without condensation / during operation / maximum95 %
      Protection class IPIP20
      Design, dimensions and weight
      Module formatCompact module S7-1500 single width
      Width35 mm
      Height142 mm
      Depth129 mm
      Net weight0.4 kg
      Mounting type
      ● S7-1500 rail mountingYes
      Product properties, functions, components / general
      Number of units
      ● per CPU / maximum8
      ● Notedepending on CPU type
      Performance data
      Performance data / open communication
      Number of possible connections / for open communication / by means of T blocks / maximum64; depending on the system upper limit
      Amount of data / as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum65536 byte
      Number of Multicast stations6
      Performance data / S7 communication
      Number of possible connections / for S7 communication
      ● maximum64
      ● Notedepending on the system upper limit
      Performance data / multi-protocol mode
      Number of active connections / with multi-protocol mode64
      Performance data / PROFINET communication / as PN IO-Controller
      Product function / PROFINET IO controllerYes
      Number of PN IO devices / on PROFINET IO controller / usable / total128
      Number of PN IO IRT devices / on PROFINET IO controller / usable64
      Number of external PN IO lines / with PROFINET / per rack10
      Amount of data
      ● as user data for input variables / as PROFINET IO controller / maximum8 Kibyte
      ● as user data for input variables / as PROFINET IO controller / maximum8 Kibyte
      ● as user data for input variables per PN IO device / as PROFINET IO controller / maximum1433 byte
      ● as user data for output variables per PN IO device / as PROFINET IO controller / maximum1433 byte
      ● as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum256 byte
      ● as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum256 byte
      Performance data / telecontrol
      Protocol / is supported
      ● TCP/IPYes
      Product functions / management, configuration
      Product function / MIB supportYes
      Protocol / is supported
      ● SNMP v1Yes
      ● DCPYes
      ● LLDPYes
      Configuration software
      ● requiredSTEP 7 Professional V13 (TIA Portal) or higher
      Identification & maintenance function
      ● I&M0 - device-specific informationYes
      ● I&M1 – higher-level designation/location designationYes
      Product functions / Diagnosis
      Product function / Web-based diagnosticsYes; yes, via S7-1500 CPU
      Product functions / switch
      Product feature / SwitchYes
      Product function
      ● switch-managedNo
      ● with IRT / PROFINET IO switchYes
      ● Configuration with STEP 7Yes
      Product functions / Redundancy
      Product function
      ● Ring redundancyYes
      ● Redundancy managerYes
      ● Media Redundancy Protocol (MRP)Yes
      Product functions / Security
      Product function
      ● switch-off of non-required servicesYes
      ● Blocking of communication via physical portsNo
      ● log file for unauthorized accessNo
      Product functions / Time
      Product function / SICLOCK supportYes
      Product function / pass on time synchronizationYes
      Protocol / is supported / NTPYes
      Further Information / Internet Links
      Internet-Link
      ● to website: Selector SIMATIC NET SELECTION TOOLhttp://www.siemens.com/snst
      ● to website: Industrial communicationhttp://www.siemens.com/simatic-net
      ● to website: Information and Download Centerhttp://www.siemens.com/automation/net/catalog
      ● to website: Image databasehttp://automation.siemens.com/bilddb
      ● to website: CAx Download Managerhttp://www.siemens.com/cax
      ● to website: Industry Online Supporthttp://support.automation.siemens.com
      last modified:03.11.2014
      Date
      04.11.2014      		Changes preserved
      © Copyright Siemens AG 2014
