General Information
Global Commercial Alias:
ACS580-01-039A-4
Product ID:
3AXD50000038962
ABB Type Designation:
ACS580-01-039A-4
EAN:
6438177459279
Catalog Description:

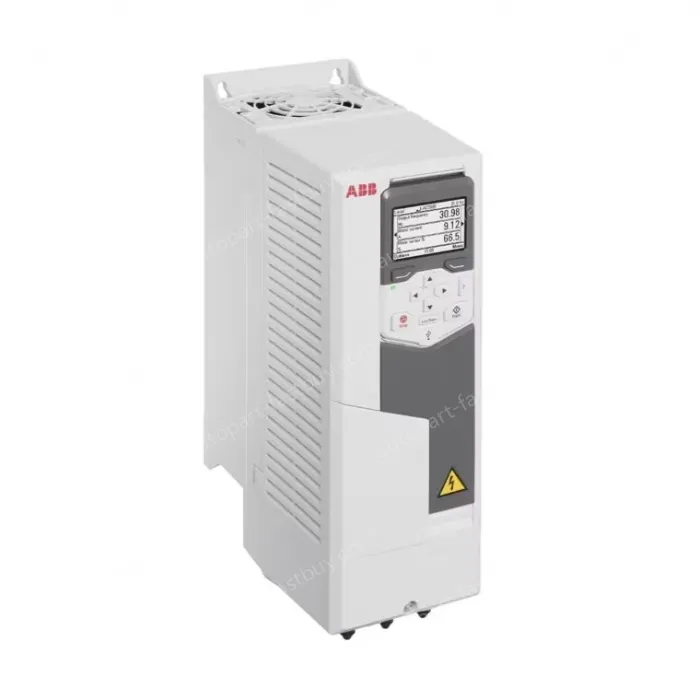

LV AC general purpose wall-mounted drive, IEC: Pn 18.5 kW, 38 A, 400 V (ACS580-01-039A-4)
Long Description:
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.

All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Ordering
Customs Tariff Number:
85044086
HS Code:
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS580-01-039A-4 PN: 18.5 kW, IN: 38 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Dimensions
Product Net Weight:
11.8 kg
26.015 lb
Product Net Depth / Length:
229 mm
9.016 in
Product Net Height:
490 mm
19.291 in
Product Net Width:
203 mm
7.992 in
Package Level 1 Depth / Length:
679 mm
26.73 in
Package Level 1 Height:
325 mm
12.80 in
Package Level 1 Width:
290 mm
11.42 in
Package Level 1 Units:
1 carton
Certificates and Declarations
Declaration of Conformity - CE:
3AXD10001818627
REACH Date:
20241203
REACH Declaration:
9AKK107992A7060
REACH Information:
True - contains substances > 0.1 mass percentage
RoHS Date:
20240508
RoHS Information:
3AXD10001818627
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Altitude:
1000 m
Operating Humidity (RHamb):
5 ... 95
Sound dB (A):
76 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):
47.5 ... 63 Hz
Frame Size:
R3
Input Voltage (Uin):
380 ... 480 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:
Control unit
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 3
Output Current, Normal Use (In):
38 A
Output Current, Light-Overload Use (ILD):
36.1 A
Output Current, Heavy-Duty Use (IHD):
31.6 A
Output Power, Normal Use (Pn):
18.5 kW
Output Power, Light-Overload Use (PLD):
18.5 kW
Output Power, Heavy-Duty Use (PHD):
15.0 kW
Power Consumption (@Pcons):
523 W
Apparent Power Output:
26 kV·A
Efficiency Level:
IE2
Standby Loss:
16 W
